Model TWO

Standard equipment

→ Anti-spark centrifugal extractor fan
→ Double front sheet for water flow
→ Lower sheet opens with gas springs
→ Rain system
→ Droplet separator
→ “Paint-stop” filter
→ Electric panel with IP55 protection class
→ Ceiling light with IP65 protection class
→ Stainless steel electric immersion pump
→ Water filter
→ Emergency push-button
→ Hour meter
→ Discharge hopper

DESCRIPTION

This water paint booth is suitable for removing the pigments and fumes released by various kinds of spray paint. Pigments and fumes are removed using a double veil of water, rain system and droplet separators, whereas air is filtered by a “paint stop” filter. Its modular structure is made up of press-folded galvanized steel panels. Both sheets are made of galvanized and painted steel. It is possible to open the lower sheet with a gas spring to extract filters for maintenance.

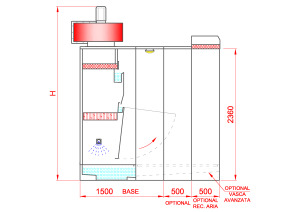

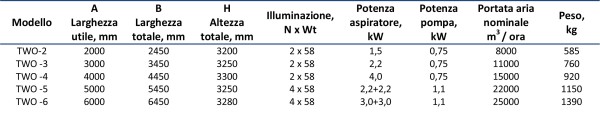

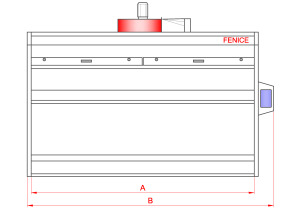

Tecnical characteristics
