Model UNDER

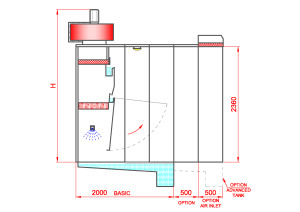

This water paint booth is suitable for removing the pigments and fumes released by various kinds of spray paint. Pigments and fumes are removed using a double veil of water, rain system and droplet separators, whereas air is filtered by a “paint stop” filter. Its modular structure is made up of press-folded galvanized steel panels. Both sheets are made of galvanized and painted steel. The lower sheet is openable. The tank is built of concrete and a grid platform is placed at floor level. The concrete tank is not included in the supply (by the final customer).

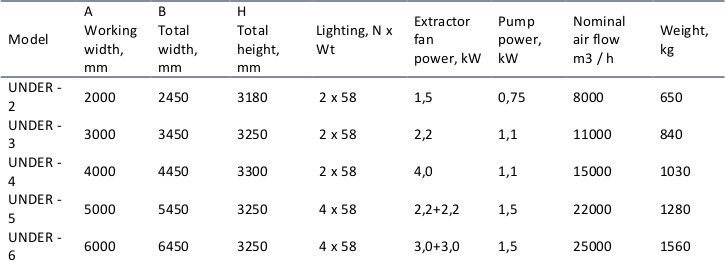

Tecnical characteristics
