Products

Model GB/DB

Standard equipment

  • Stainless steel heat exchanger
  • Transmission centrifugal fan
  • Gas or Diesel burner
  • Inlet damper
  • Outlet fire damper
  • Safety limit thermostat
  • Inlet filter
  • Soundproof structure

This air handling unit consists of a support frame and exterior panels which are insulated with glass wool. It is equipped with a double suction centrifugal fan with belt drive and an inlet polyester filter. It includes: a 430 stainless steel heat exchanger, a burner, a fume exhaust duct, an inlet damper and an outlet fire damper with double safety system.

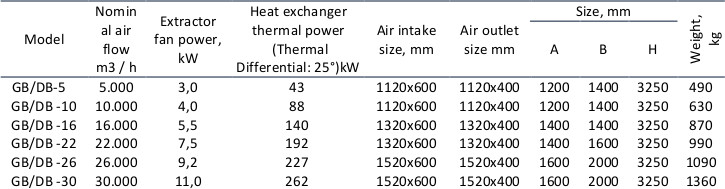

Tecnical characteristics
